Single Phase Meter Test Bench IEC 62052 Auto Calibration

Name: Single Phase Meter Test Bench IEC 62052 Auto Calibration
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1891D

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Plywood case

Installation : Direct Connected

Theory : Electronic Meter

Frequency Range : 45Hz – 65Hz

Test voltage output : 24V – 300V or customized

Contact Now

Single Phase Meter Test Bench IEC 62052 Auto Calibration

Guangzhou GENY Electric Co., Ltd. presents the GENY YC1891D Single-Phase Meter Test Bench—an all-in-one, IEC-compliant system that combines a programmable power source, precision reference meter and clock to deliver fast, traceable calibration of any single-phase meter for utilities, plants and manufacturers worldwide.

Parameters

Main Technical Indicators	Parameter Value
Power Supply	AC220V±10%, 50Hz±2Hz
Ambient Temperature	-10°C ... +40°C
Ambient Humidity	35% ... 95%
Output Voltage Range	24V ... 288V
Output Voltage Power	1000VA (Max)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3% (Full linear load range)
Output Current Range	1mA ... 120A (Up to 230A Max)
Output Current Power	2000VA (Max)
Current Resolution	0.01%
Current Stability	0.02%/120s
Load Change Rate	0.01%
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Phase Adjustment Range	0° ... 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz ... 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s

Single Phase Meter Test Bench IEC 62052 Auto Calibration

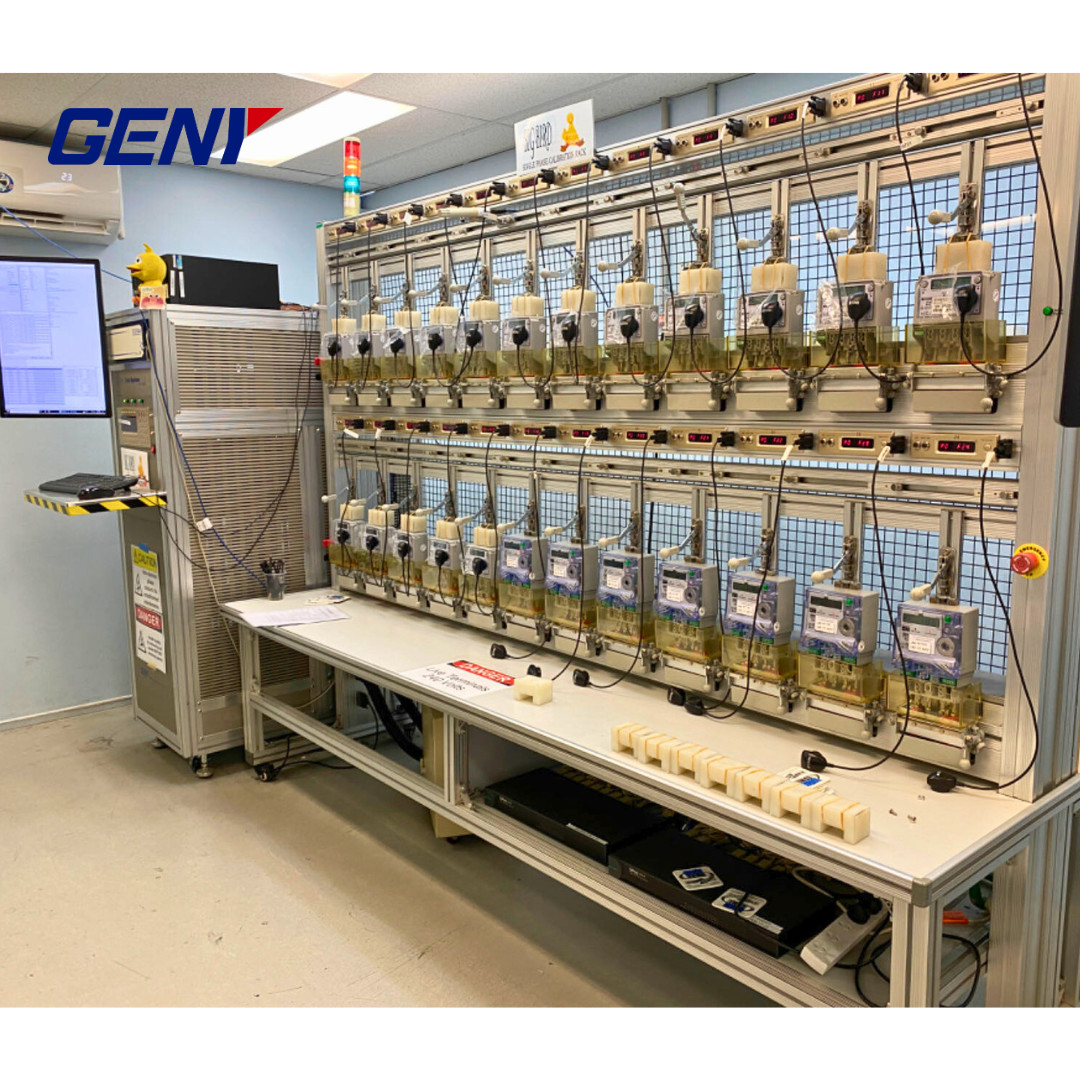

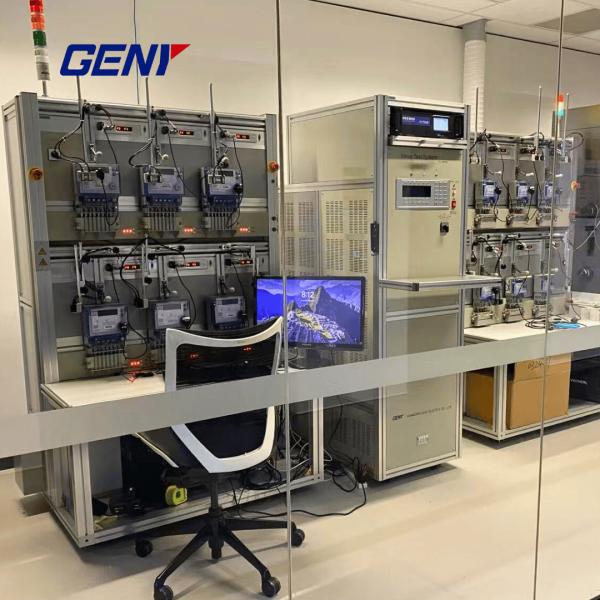

Single Phase Meter Test Bench IEC 62052 Auto Calibration Images
