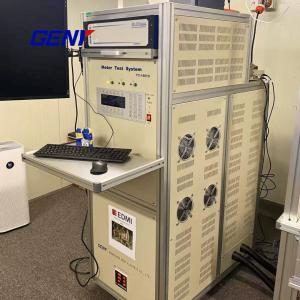

High-Stability 1500VA Programmable Power Source for Meter Testing

Name: HighStability 1500VA Programmable Power Source for Meter Testing
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YCS-103

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Plywood case

Accuracy class : Class 0.02

Test voltage output : 3*（24v-300v）or customized

Test current output : 3*（1mA-120A/200A)

High power output : (max. voltage power: 1000VA, current power: 1500VA)

Contact Now

High-Stability 1500VA Programmable Power Source for Meter Testing

Description

• Ultra-high accuracy and long-term stability for demanding calibration tasks
• RS232 interface for seamless integration into automated production lines
• Optional keypad for quick on-site manual control
• 2nd–21st harmonic: amplitude and phase fully programmable to replicate real-world grid conditions
• Lightweight, rugged aerospace-grade aluminum alloy housing—corrosion-resistant for tropical humidity
• Built-in protection against overload, short-circuit (voltage) and open-circuit (current) for 24/7 safe operation
• Intuitive bilingual control software (English/Chinese interface) – zero learning curve, ready in minutes

Applications

• National power utilities
• Government metrology & certification bureaus
• Leading energy-meter manufacturers (OEM/ODM support)

Primary Competitive Advantages

• International-grade quality, compliant with IEC 61000 & ANSI C12.20
• High power output: up to 1000 VA (voltage) / 1500 VA (current) – one unit replaces multiple sources
• Industry-leading power stability: temp drift <50 ppm/°C, annual drift <0.01 %
• Total harmonic distortion <0.3 % on linear resistive load for trustworthy calibration results

Parameters

	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Voltage
Test voltage output (Phase-Neutral)	3×(24V – 288V) or customized
Power of the voltage output	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	3×(1mA – 100A)
Power of the current output	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

Voltage Supply	3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

High-Stability 1500VA Programmable Power Source for Meter Testing
