Advanced Stationary Meter Test Bench

Name: Advanced Stationary Meter Test Bench
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1891D

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Plywood case

Accuracy : 0.05/0.02/0.01

Standard Meter : SZ03A-K6 / SZ03A-K8

Test voltage output : 24V – 288V or customized

Test current output : 1mA – 100A or customized,Max.200A

Frequency Range : 45Hz~65Hz

Contact Now

Advanced Stationary Meter Test Bench

Advanced Energy Meter Test System Supports Comprehensive Testing in Line with IEC and MS 62052/MS 62053 etc. Standards

Main Features of the YC1893D Energy Meter Test Equipment :

The YC1893D meter test system is designed to conduct a wide array of tests, ensuring that electricity energy meters meet the necessary standards for accuracy and performance. Key testing functions include:

1. Basic Error Testing: This function evaluates the fundamental accuracy of the electricity meters under various load conditions, providing a baseline for their performance.

2. Creep, Startup, and Dail Tests: These tests assess the meter's response to minimal load conditions, ensuring that they operate accurately even at low energy consumption levels.

3. Influence Quantities Testing: The YC1893D is capable of testing the impact of various factors such as voltage, frequency, and harmonics on the meter's performance, ensuring that the meters remain accurate under different operating conditions.

4. Harmonic Testing: The test system supports comprehensive harmonic output, including general harmonics, subharmonics, odd and even orders harmonic, as well as DC harmonic component testing. This ensures that the meters can accurately measure power quality in environments with complex waveforms.

Specifications:

Technical spec.	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05 / 0.02
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

Advanced Stationary Meter Test Bench

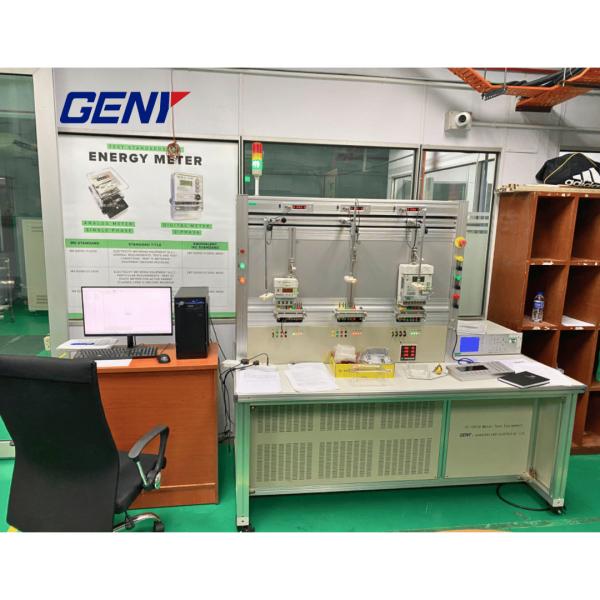

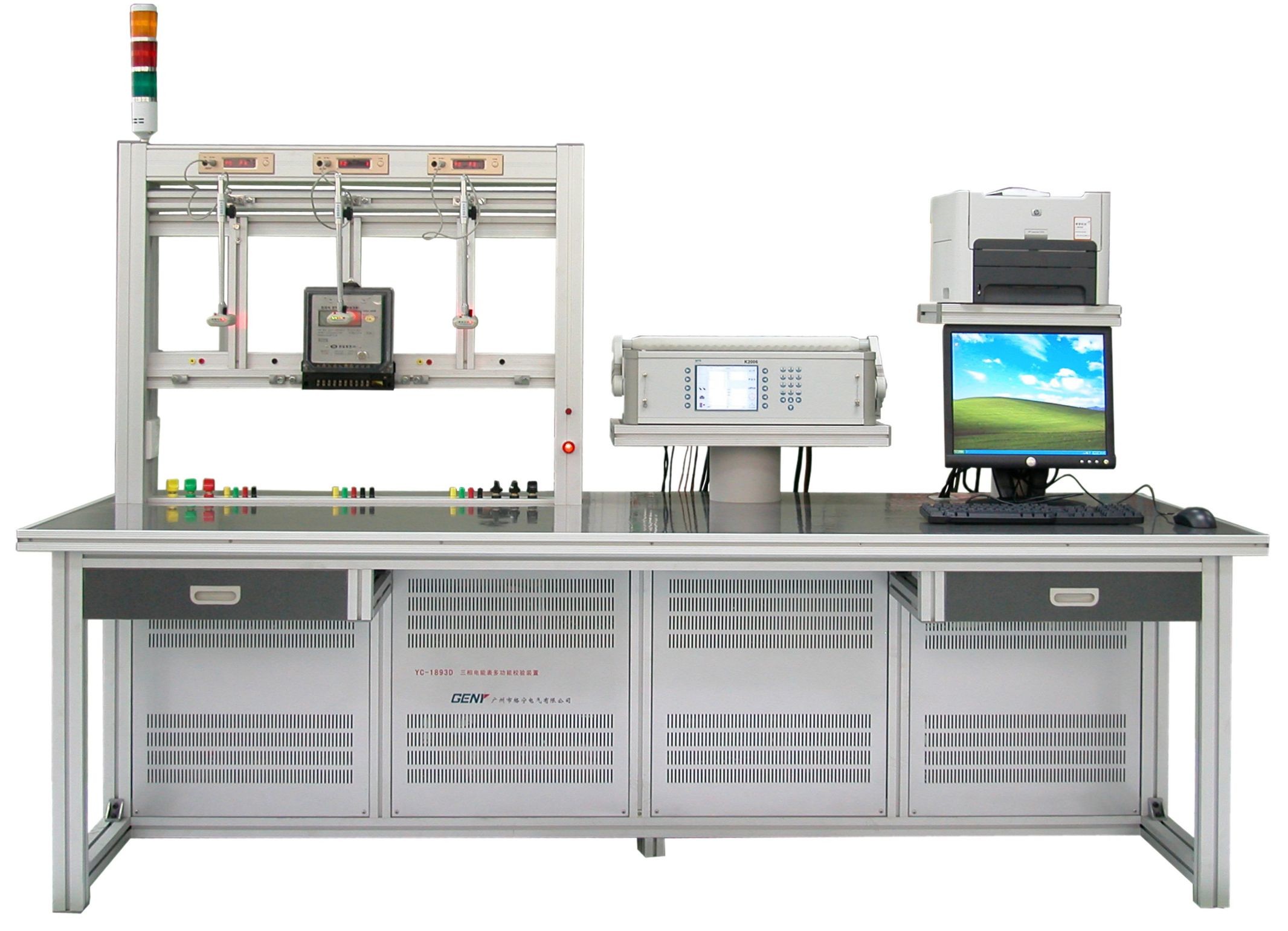

Advanced Stationary Meter Test Bench Images
