0.05 Class High-Precision 3-Phase Smart Meter Test Bench

Name: 005 Class HighPrecision 3Phase Smart Meter Test Bench
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1893D

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Plywood case

class : 0.05

Test current output : 3x(0.3mA-120A)

Frequency Range : 45Hz – 65Hz

Test voltage output(Phase-Neutral) : 3x(24V-300V)

Contact Now

0.05 Class High-Precision 3-Phase Smart Meter Test Bench

Description

• Parallel RS232 Communication Port – simultaneous multi-meter testing of smart meters
• Rack-Mounted Terminal Calibration – one-click bench verification for test stations
• Reference Standard Meter Accuracy Testing – traceable precision checks
• Pre-Warming Cycle – automated stabilization before measurement
• IEC Accuracy Test Suite – base error, starting current, creeping, repeatability, dial test
• Influence Quantity Tests – voltage, frequency, reverse phase sequence, voltage unbalance
• Harmonics & Sub-Harmonics – immunity to odd harmonics and sub-harmonics per IEC standards

Technical Data

Power Supply

Voltage

3 ×230/398V±10%

Frequency

50 / 60Hz ±2Hz

Power capacity

>3 ×3kVA

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%

Voltage output

Test voltage output(Phase-Neutral)	3x(24V-300V)
Power of the voltage output	3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-21st free programmable

Current Output

Test current output	3x(0.3mA-120A)
Power of the current output	3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-21st free programmable

Phase Angle

Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°

Frequency

Range	45Hz-65Hz
Resolution	0.01Hz

0.05 Class High-Precision 3-Phase Smart Meter Test Bench

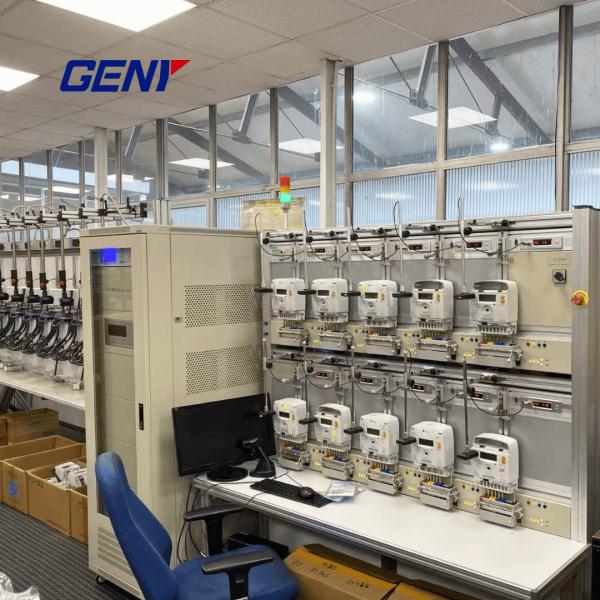

0.05 Class High-Precision 3-Phase Smart Meter Test Bench Images
