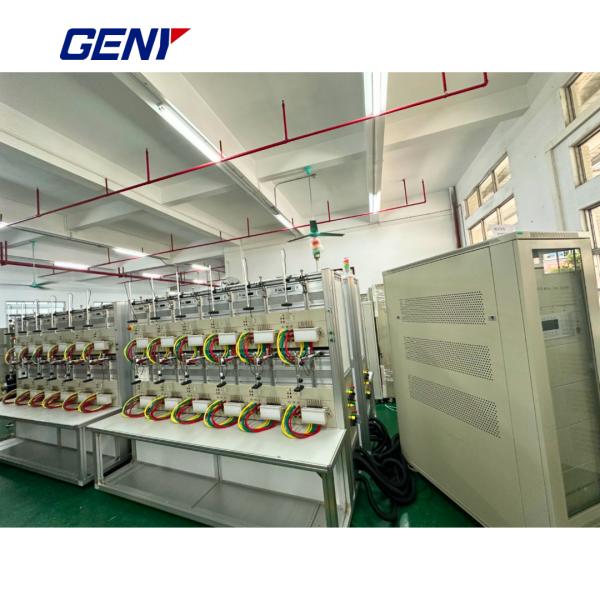

Multi-station Meter Test Bench

Product Categories

Guangzhou GENY Electric Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Multistation Meter Test Bench
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1893/1D

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Accuracy : 0.05 / 0.02

Standard Meter : SZ03A-K6 / SZ03A-K8/SZ01A-K3

Relative humidity : 35%~85%

Ambient temperature : -10°C -- +40°C

Contact Now

Applications

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Technical spec.	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05 / 0.02
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
