Multi Position Test Equipment

Name: Multi Position Test Equipment
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1891D

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Plywood case

Accuracy : 0.05

Standard Meter : SZ01A-K3

Test voltage output : 24V – 288V or customized

Test current output : 1mA – 100A or customized,Max.200A

Contact Now

Multi Position Test Equipment

Meter Test Equipment Overview

Our advanced stationary meter test system supports high-precision testing of mechanical, electromechanical, and electronic meters. It offers automatic, semi-automatic, and manual operation modes, and is compatible with single-phase (1P2W) meters. Testing functions include active power, reactive power, and cross-connected reactive power measurement.

Specification

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Multi Position Test Equipment

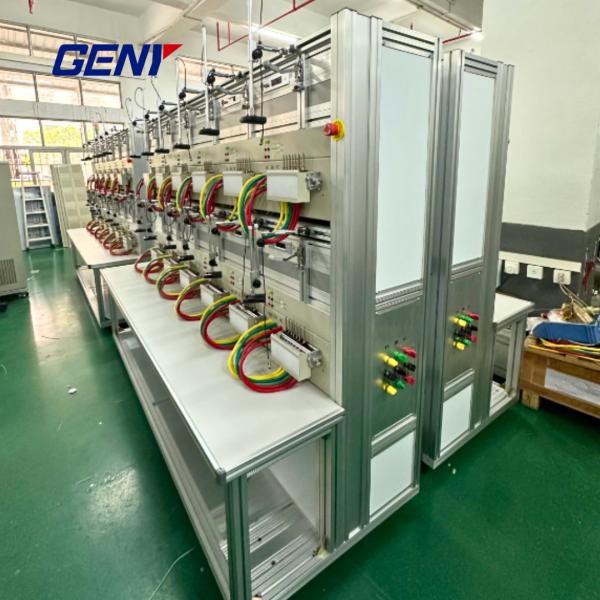

Multi Position Test Equipment Images
